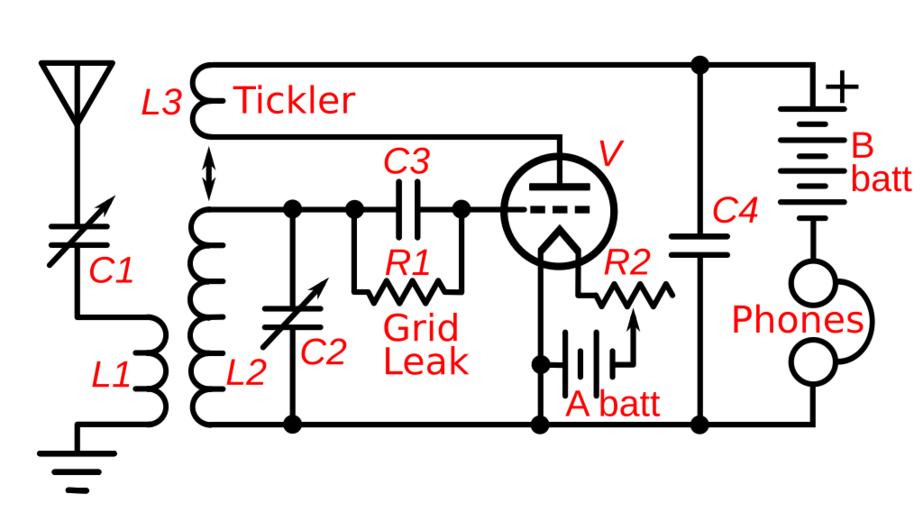

MAKE A MEME View Large Image Armstrong regenerative receiver circuit.svg regenerative receiver circuit invented in 1913 by American engineer Edwin Armstrong when he was a 22 year old college student It was widely used until the 1930s when it was replaced by TRF and ...
View Original:Armstrong regenerative receiver circuit.svg (942x472)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Armstrong regenerative receiver circuit.svg regenerative receiver circuit invented in 1913 by American engineer Edwin Armstrong when he was a 22 year old college student It was widely used until the 1930s when it was replaced by TRF and superheterodyne receivers In the regenerative receiver the gain of the tube is increased by feeding back some of the energy from the output plate circuit into the input grid circuit In the Armstrong circuit this is done by the tickler coil L3 2016-01-25 own Chetvorno other versions cc-zero Regenerative circuits
