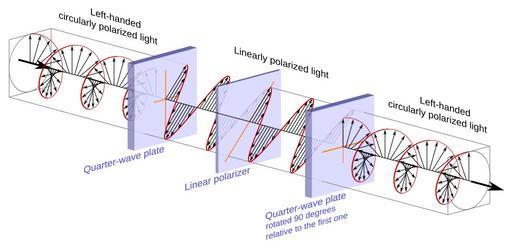

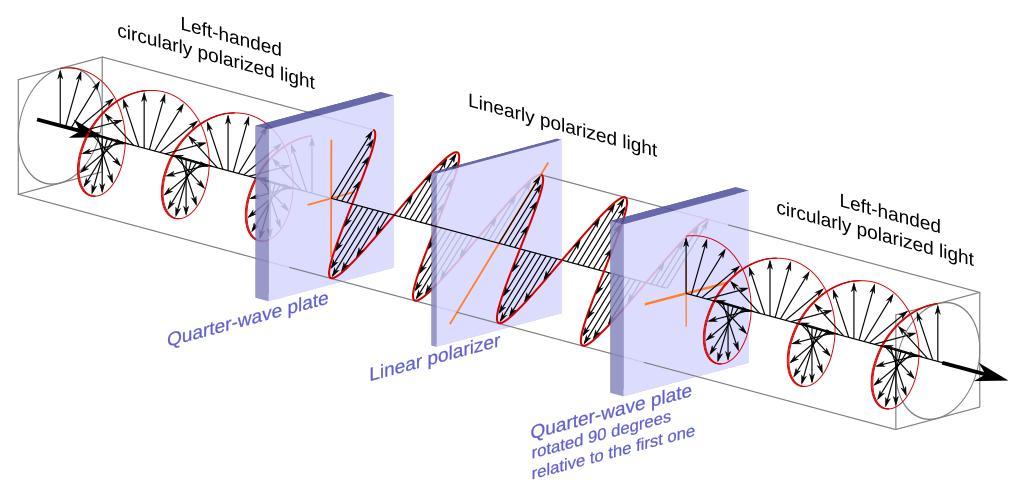

| Keywords: Circular.Polarization.Circularly.Polarized.Light Homogenous Circular.Polarizer Left.Handed.svg Refer here A homogenous circular polarizer can be created by sandwiching a linear polarizer between two quarter-wave plates We take the circular polarizer described previously which transforms circularly polarized light into linear polarized light and add to it a second quarter-wave plate rotated 90° relative to the first one The linearly polarized light that is created by the first quarter-wave plate and then passes through the linear filter is transformed back into left handed circularly polarized light Right handed polarized light entering would be blocked by the linear polarizer As a result such circular polarizers pass one handedness of circularly polarized light unaltered but block the other polarization Generally speaking when either of the two polarizations of circularly polarized enter the first quarter-wave plate their horizontal components are retarded by one quarter wavelength relative to the vertical component creating one of two linear polarizations Depending on which handedness the circularly polarized light is the linear polarizer will either pass the light or block it The second quarter-wave plate then retards the vertical component of the linearly polarized light that does pass through the linear polarizer bringing the two components back into their initial phase relationship By rotating the linear polarizer 90° relative to the quarter-wave plates one can change which handedness of circularly polarized light passes unaltered and which gets blocked ---- This image was created using the open source program Inkscape If you open it using that program the image will still be divided into layers and you will have access to information used to create it If you need to alter it I would suggest first going to my Wikimedia User page at Dave3457 where information is gathered and other related images are listed Created with Inkscape polarization own Dave3457 thumb left 100px Russian Translation possible Polarization filters | ||||
