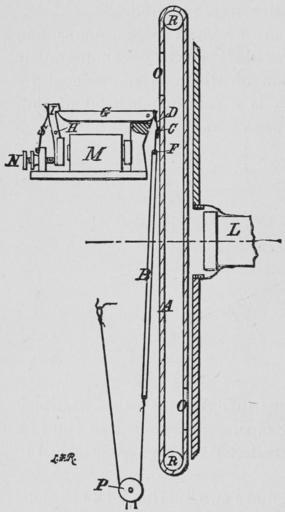

| Keywords: Descriptive Zoopraxography 034.jpg en Side view of electro-photographic exposor A is a continuous band of thin rubber cloth impervious to light; the edges of which are bound with strong tape and arranged to run in a groove and over two rollers RR which are attached to a frame In this endless band are two apertures OO of suitable size and so arranged that their full openings as they pass each other shall simultaneously take place in front of the center of the lens L The upper and lower edges of these apertures are kept taut by light steel rods attached to the tape binding To the lower rod of the front aperture is fastened a ring C and a cleat to which some elastic rubber bands B are attached; these bands are easily removable and their number increased at discretion; in some instances of rapid exposures a tension of twenty-five pounds or more was required On a shelf of the frame is a magnet M over the top of which is arranged a steel lever G pivoted near the end D which terminates with a slightly indented projection The armature of the magnet is pivoted at H; its upper arm terminates with a shoulder I S is a spring to prevent the accidental shifting of the shoulder from its contact with the lever when the exposor is ready for its function N is a set screw to adjust the distance of the armature from the magnet To prepare for a series of photographic exposures ”the plates having been already placed in the cameras ”the end of the lever G is placed under the shoulder I; the endless curtain is revolved until the front aperture O is raised to its proper position when the ring C is hooked upon the projecting point D A cord attached to the rubber bands B is drawn around the pulley P and a ring at its end is slipped over a pin which keeps the spring at a proper state of tension Upon the completion of an electric circuit the armature is drawn towards the magnet; the end of the lever is released from its contact with the shoulder; the ring C is released from the projecting point D; the front of the endless curtain is drawn rapidly downward; the apertures meet in the center of the lens form a gradually expanding and then contracting diaphragm and the exposure is made 1893 Descriptive Zoopraxography or the Science of Animal Locomotion made Popular Creator Eadweard Muybridge PD-Gutenberg PD-old-100 Descriptive Zoopraxography | ||||
