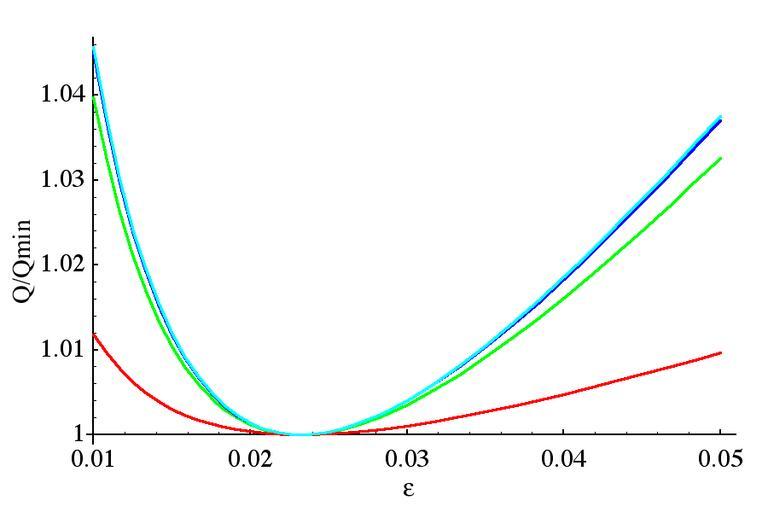

MAKE A MEME View Large Image Elliptic8 Qfactor.png The normalized Q-factors of the poles of an 8-th order elliptic filter with 1 1 as a function of ripple factor Each curve represents four poles since complex conjugate pole pairs and positive-negative pole pairs have ...
View Original:Elliptic8 Qfactor.png (900x600)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Elliptic8 Qfactor.png The normalized Q-factors of the poles of an 8-th order elliptic filter with 1 1 as a function of ripple factor Each curve represents four poles since complex conjugate pole pairs and positive-negative pole pairs have the same Q-factor The Q-factor of all poles are simultaneously minimized at <math>\epsilon 1/\sqrt L_n 0 02323\ldots</math> source code please graph Quality factor
