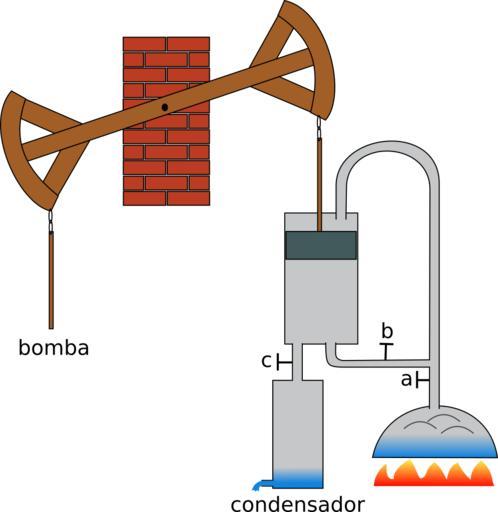

MAKE A MEME View Large Image Engine watt.svg en James Watt steam engine outline Valves a and c are opened and steam gets out the cylinder to the condenser while more steam gets in from upper thus pushing the plunger down Valves a and c are closed b is opened so steam ...
View Original:Engine watt.svg (957x985)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Engine watt.svg en James Watt steam engine outline Valves a and c are opened and steam gets out the cylinder to the condenser while more steam gets in from upper thus pushing the plunger down Valves a and c are closed b is opened so steam goes to the bottom of the cylinder Plunger moves up pushed by the heavy piston of the pump es Esquema de la máquina de vapor de James Watt Con las válvulas a y c abiertas el pistón baja El vapor sale hacia el condensador mientras nuevo vapor entra en la parte superior empujando el émbolo hacia abajo Se cierran las válvulas a y c se abre b con lo que el vapor pasa de la parte superior a la inferior del cilindro El émbolo se mueve hacia arriba empujado por el peso del pistón de la bomba 2014-07-04 10 36 30 own MdeVicente cc-zero Uploaded with UploadWizard Drawings of steam engines Watt engines
