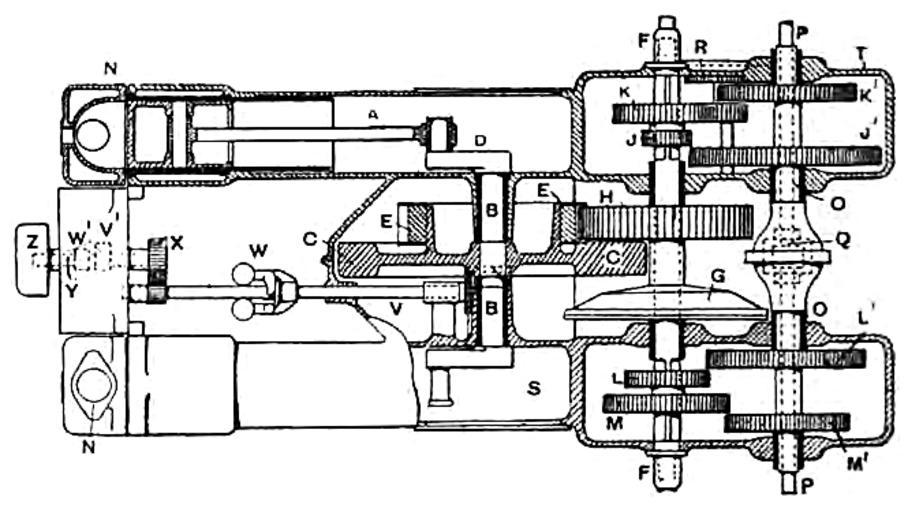

| Keywords: James and Browne gearbox.png Engine and gearbox of a James and Browne automobile circa 1902 sectioned horizontally to show mechanical layout I'll attempt to provide a key below The Automobile A Practical Treatise by Paul Nooncree Hasluck through Google Books http //books google com/books id vgdJAAAAMAAJ 1903 book Paul Nooncree Hasluck 1854-1931 PD in all life+70 nations A Connecting rod B Crank shaft C Flywheel D Overhang cranks parallel with one another E Buffoline spur wheel i e rawhide F First-motion shaft G Clutch H Spur wheel J First speed gears K Third speed gears L Second speed gears M Fourth speed gears N Cylinders combustion chamber O Sleeve of countershaft P Countershaft Q Differential casing and brake drum R Reversing intermediate spur S Crank chamber T Composite aluminium crank-case U Bevel gears driving cams V Intermediate camshaft W Motor governor X Spur gearing Y Camshaft Z Commutator PD-old James and Browne vehicles Automobile transmissions | ||||
