MAKE A MEME View Large Image Locos (microtechnology) process recessed.svg The image illustrates the LOCOS technology used in microfabrication mostly to create isolating structures I Preparation of silicon substrate II CVD deposition of SiO2 pad/buffer oxide III CVD ...
View Original:Locos (microtechnology) process recessed.svg (449x6)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This

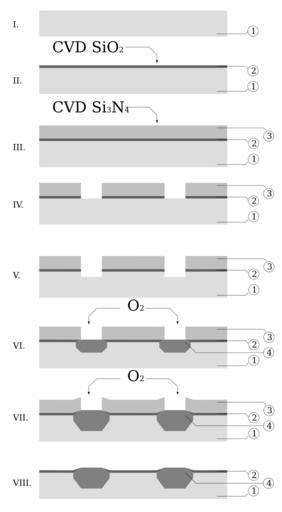

Keywords: Locos (microtechnology) process recessed.svg The image illustrates the LOCOS technology used in microfabrication mostly to create isolating structures I Preparation of silicon substrate II CVD deposition of SiO2 pad/buffer oxide III CVD deposition of Si3N4 nitride mask IV Etching of nitride layer and silicon oxide layer V Silicon etch VI Thermal growth of silicon oxide VII Furhter growth of thermal silicon oxide VIII Removal of nitride mask 1 Si silicon substrate 2 SiO2 pad/buffer oxide chemical vapor deposition silicon oxide 3 Si3N4 nitride mask 4 SiO2 isolation oxide thermal oxide Own 2008-01-19 Twisp Thermal oxidation SVG microtechnology Chemical vapour deposition
