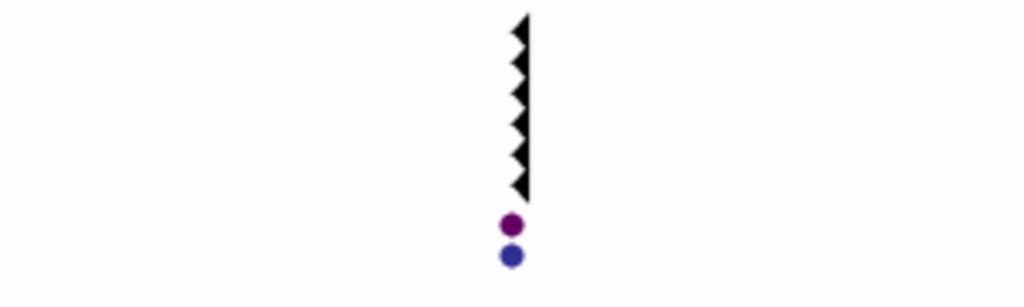

Keywords: SquareWaveFourierArrows.gif en The six arrows represent the first six terms of the Fourier series of a square wave The two circles at the bottom represent the exact square wave blue and its Fourier-series approximation purple 2014-03-06 20 54 27 own Sbyrnes321 cc-zero Source code <source lang python > C Steven Byrnes 2014 This code is released under the MIT license http //opensource org/licenses/MIT This code should work in Python 2 7 or 3 3 It requires imagemagick to be installed; that's how it assembles images into animated GIFs from __future__ import division print_function import pygame as pg from math import pi from cmath import exp import subprocess os directory_now os path dirname os path realpath __file__ frames_in_anim 200 animation_loop_seconds 5 time in seconds for animation to loop one cycle bgcolor 255 255 255 white circle_radius 12 img_height 300 img_width 1000 pygame draws pixel-art not smoothed Therefore I am drawing it bigger then smoothly shrinking it down final_width int round 0 3 img_width final_height int round 0 3 img_height Constants and function for calculating electron motion def coef n f t sum of Recoef n e int return 0 if n 2 0 else -1j / n def exact phase exact square wave function if phase 0 or phase pi return 0 if phase 2 pi < pi return pi/4 return -pi/4 center_x 500 scale 450 scale multiplies all horizontal distances def draw_arrow surf tail_xy head_xy width 2 color 0 0 0 draw a horizontal arrow tail_xy and head_xy are 2-tuples Unpack them first tail_x tail_y tail_xy head_x head_y head_xy assert head_y tail_y h 16 arrowhead height b 18 arrowhead half-base if tail_x < head_x rightward arrow triangle head_x head_y head_x - h head_y - b head_x - h head_y + b else leftward arrow triangle head_x head_y head_x + h head_y - b head_x + h head_y + b pg draw line surf color tail_x tail_y head_x head_y width pg draw polygon surf color triangle 0 def main function for creating the animated GIF Make and save a drawing for each frame filename_list os path join directory_now 'temp' + str n + ' png' for n in range frames_in_anim for frame in range frames_in_anim phase 2 pi frame / frames_in_anim initialize surface surf pg Surface img_width img_height surf fill bgcolor draw all the arrows x_now center_x y_now 30 for n in range 1 13 2 new_term scale coef n exp n 1j phase real draw_arrow surf x_now y_now x_now + new_term y_now width 8 x_now + new_term y_now + 30 draw the two circles pg draw circle surf 100 0 100 int round x_now int round y_now + 10 circle_radius 0 pg draw circle surf 50 50 150 int round center_x + scale exact phase int round y_now + 40 circle_radius 0 scale down then save the surface shrunk_surface pg transform smoothscale surf final_width final_height pg image save shrunk_surface filename_listframe seconds_per_frame animation_loop_seconds / frames_in_anim frame_delay str int seconds_per_frame 100 command_list 'convert' '-delay' frame_delay '-loop' '0' + filename_list + 'anim gif' Use the convert command part of ImageMagick to build the animation subprocess call command_list cwd directory_now Earlier we saved an image file for each frame of the animation Now that the animation is assembled we can optionally delete those files if True for filename in filename_list os remove filename return main </source> Uploaded with UploadWizard Mathematical animations Images with Python source code Square waves Fourier series |
