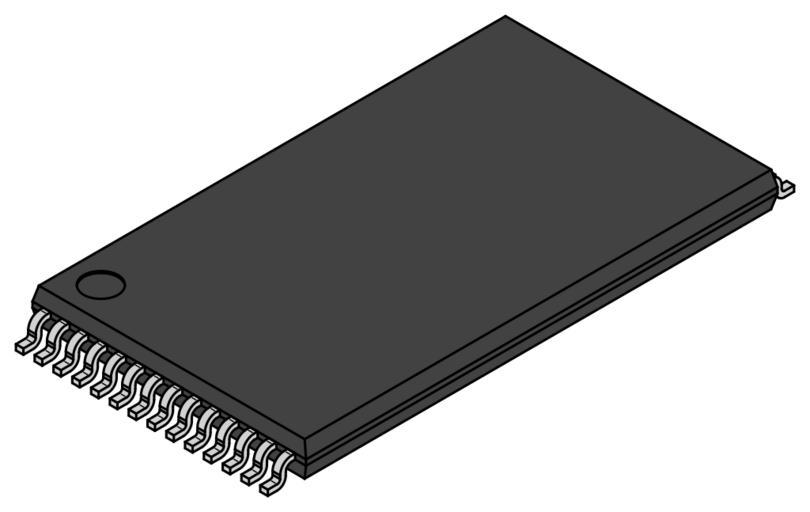

MAKE A MEME View Large Image TSOP-28 (T1) Blank.svg A coloured line drawing of a Type 1 leads on short side TSOP-24 IC Carrier Note that this carrier has 0 55mm lead pitch Own drawing modelled in Solid Edge 14 exported to SVG 2007-05-28 Inductiveload Type 1 TSOP-28 ...
View Original:TSOP-28 (T1) Blank.svg (475x300)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: TSOP-28 (T1) Blank.svg A coloured line drawing of a Type 1 leads on short side TSOP-24 IC Carrier Note that this carrier has 0 55mm lead pitch Own drawing modelled in Solid Edge 14 exported to SVG 2007-05-28 Inductiveload Type 1 TSOP-28 Outline Drawing prettytable colspan 2 Image IC Carrier Icon svg      Integrated Circuit Carrier - colspan 2 TSOP-28 Type 1 0 55mm - Name Thin Small Outline Package - Number of Leads 28 - Type of Lead Gull-wing - Mounting Surface-mount - Nominal Body Width 8 1 mm - Nominal Body Length 11 8 mm - Mounted Height 1 mm - Lead Pitch 0 55 mm Solid Edge drawings TSOP integrated circuit packages
