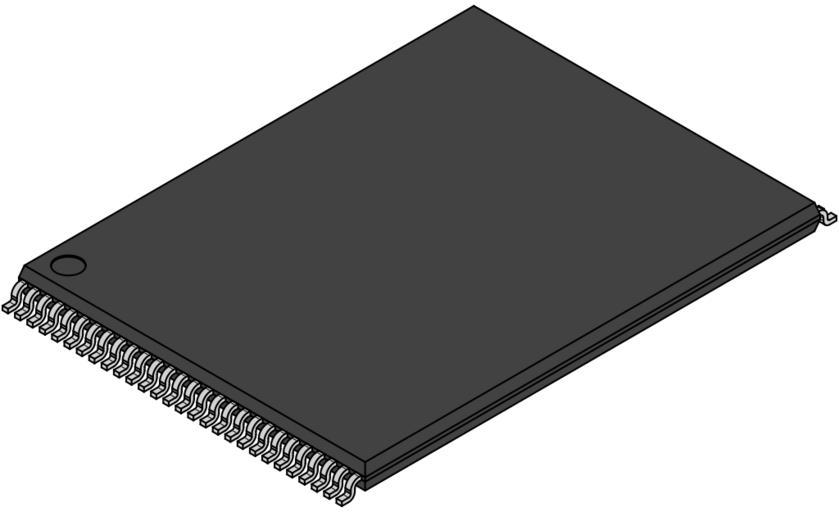

MAKE A MEME View Large Image TSOP-56 (T1) Blank.svg A coloured outline drawing of a Type 1 TSOP-56 IC Carrier Own drawing modelled in Solid Edge 14 exported to SVG 2007-05-29 Inductiveload TSOP-56 Outline Drawing prettytable colspan 2 Image IC Carrier Icon svg      ...
View Original:TSOP-56 (T1) Blank.svg (680x415)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: TSOP-56 (T1) Blank.svg A coloured outline drawing of a Type 1 TSOP-56 IC Carrier Own drawing modelled in Solid Edge 14 exported to SVG 2007-05-29 Inductiveload TSOP-56 Outline Drawing prettytable colspan 2 Image IC Carrier Icon svg      Integrated Circuit Carrier - colspan 2 TSOP-56 Type 1 - Type Thin Small Outline Package - JEITA Code P-TSOP 1 -056-1420-0 50 - Number of Leads 56 - Type of Lead Gull-wing - Mounting Surface-mount - Nominal Body Width 14 mm - Nominal Body Length 18 4 mm - Nominal Overall Length 20 mm - Mounted Height 1 mm - Lead Pitch 0 50 mm Solid Edge drawings TSOP integrated circuit packages
